3D Gence Industry F350

3D Gence logo

3DGence INDUSTRY F350

Dual extruder 3D printer designed for industrial applications where accuracy, speed, comfort and safety of the entire 3D printing process are crucial.

This 3D printer is suitable for working with a wide range of technical materials including the high-performance thermoplastics.

CONTACT US

Features

Productivity

Achieve the best results with unmatched speed on INDUSTRY F350.

High travel and print speeds with the highest quality at the same time is possible with closed-loop, encoded stepper motor system.

Print speed up to 400 mm/s and 1 meter per second of travel move.

Heated printing chamber

F350 is equipped with actively heated build chamber, for optimum printing conditions.

The combination of the heated build chamber, appropriate extrusion temperatures, and heated material chamber, ensures that the prints made of high-performance polymers like PC or PEEK are always of best possible quality.

The heated chamber allows to print polycarbonate, PC blends or copolymers reaching the expected mechanical properties, without warping or any other printing failures.

Versatility​

Print high-performance and engineering grade materials on one machine.

The possibility of using three different modules in one 3D printer allows to produce repeatable models from the widest range of filaments.

Printing modules are interchangable between F350 and F420 INDUSTRY line 3D printers.

Current materials portfolio – PEEK, PA6, PA-CF, PC, ABS, ASA and PLA

Cost-efficiency

Best in class total cost of ownership

Benefit from the best price to volume ratio among the industrial-grade 3D printers with 3DGence INDUSTRY line. Save time and money during the full lifetime of your industrial 3D printer.

Online monitoring

INDUSTRY F350 meets the Industry 4.0 requirements.

3DGence CLOUD includes such services and functionalities as running or queueing the prints, remote monitoring of the printer and prints status, file sharing, live camera feed and collection of the statistics. The software dedicated to the 3DGence industrial printers INDUSTRY F420 and F350.

Safety

Ensured user safety and work continuity.

With a focus on high-performance materials, it’s important to provide adequate emissions control. F350 filteration system offer unprecedented filtering efficiency among FFF AM platforms, capable of filtering: macro dust, nano dust (VOC, UFP), solvent vapour, noxious gasses, foreign particles.

F350 can be equipped with a UPS unit, that supports all functions during power outages. Signal tower is an additional accessory, indicates the status of the print and makes the machine highly visible from distant parts of the production site.

Heated material chamber

Proper filaments handling ensures the best results. Keep your materials always dry and ready to print.

Materials are kept in a stable environment due to the heated materials chamber. Humidity for the loaded materials will be reduced regardless of the 3D printer’s operational status thanks to the active chamber heating system.

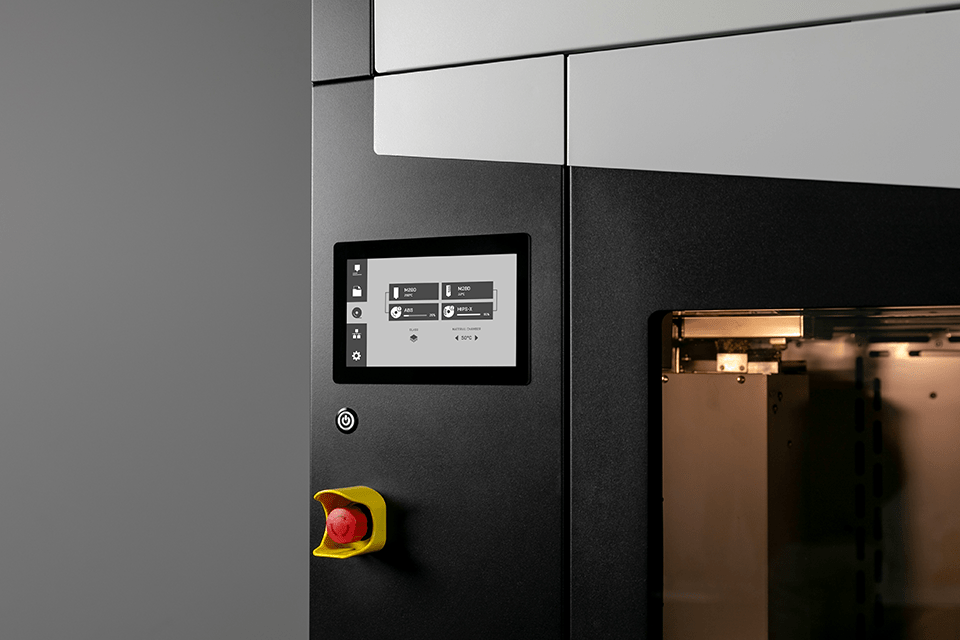

Smart Material Manager

Guarantee of optimal working conditions. Take control over the printing process and get the results you want.

Smart Material Manager is an intelligent filament and printing environment control system. SMM consists of NFC reader for loaded material recognition, material weight control system, automatic material loading system and flows control sensor.

Filaments

peek

PEEK

High-performance polymer from PAEK family which offers a unique combination of properties.

ultem

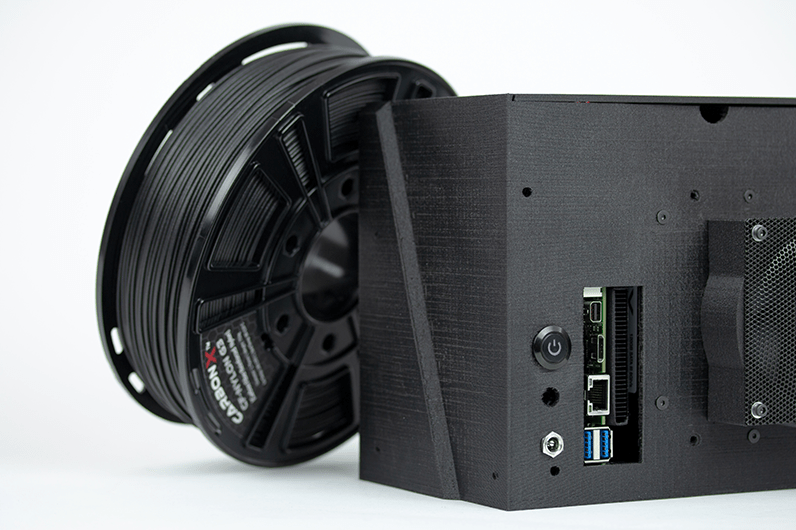

PA-CF

Highly chemically and heat resistant industrial material.

PEKK

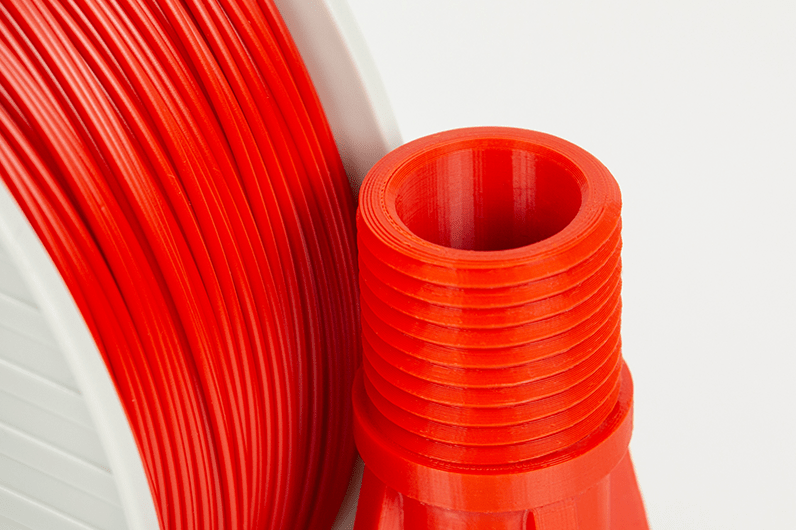

ABS

ABS is one of the most popular thermoplastics, regardless of production technology.

asa

ASA

Thermoplastic that combines mechanical strength, UV resistance and water resistance.

pc

PC

One of the most durable, hardest and heat resistant engineering grade polymer.

hips

HIPS

Polystyrene-based polymer similar to ABS but its mechanical properties are slightly higher.

Technical specification

Print Technology FFF
Build volume 340 x 340 x 350 mm (40 460 cm3)
Minimum layer height 50µm
Number of printheads 2, printhead purging system
Filament diameter 1,75 mm
Printhead temperature 500°C
Buildplate temperature 160°C
Chamber temperature 130°C (active heating)
Filament chamber temperature 50°C
Travel move 1000 mm/s
Printing speed Up to 400 mm/s
Power requirements 230V
Max. power draw w/o accessories 2800W
Max. power draw with accessories 3300W
Communication Ethernet, Wi-Fi, USB drive
Slicing software 3DGence SLICER 4.0
Cloud based services 3DGence CLOUD
Filtration Advanced filtration unit
Sensors Main chamber door, top access hatch, thermal sensors, emergency switch
UPS device Yes, optional
Others Software access overdrive – remote shut down
