HP JET FUSION 3D 300/500

Reinvent the wheel and how you make it

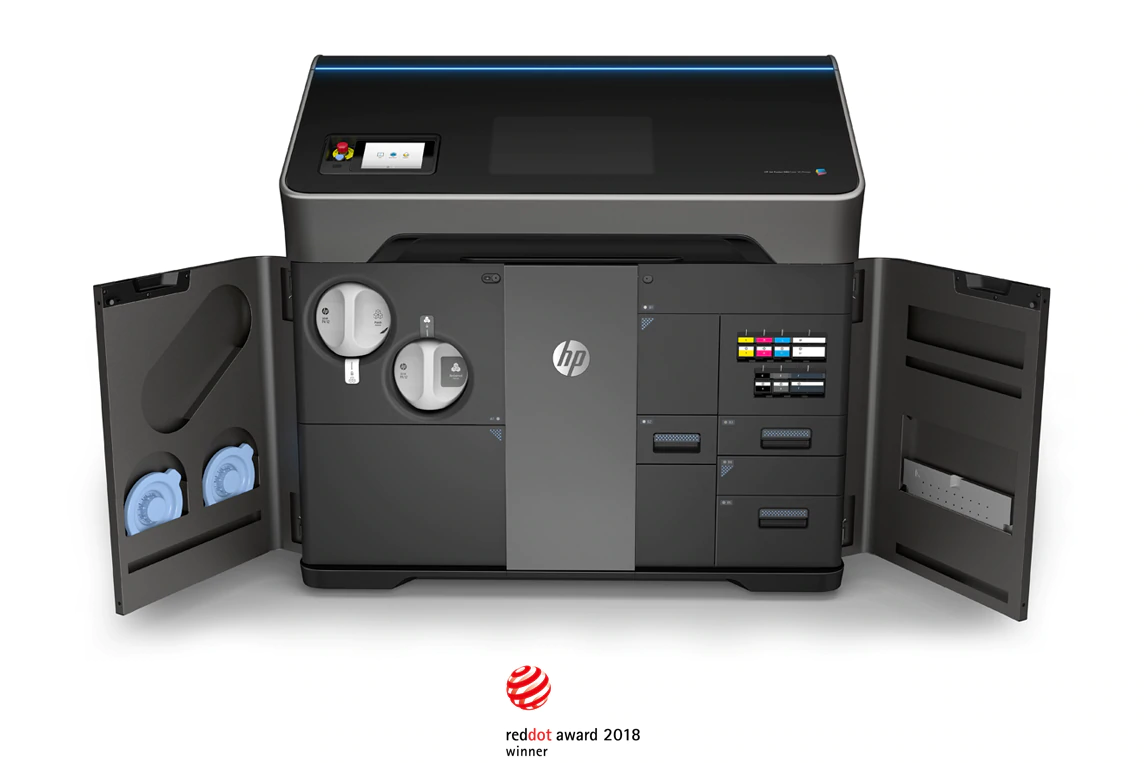

HP JET FUSION 500/300 SERIES 3D PRINTERS

INTUITIVE USER INTERFACE
INTUITIVE USER INTERFACE

Easy-to-follow instructions on the large touch-screen control panel and way finding lights throughout the machine ensure task confidence.


PRODUCE FUNCTIONAL PARTS WITH INTRICATE DETAIL
PRODUCE FUNCTIONAL PARTS WITH INTRICATE DETAIL

Achieve fine detail and high dimensional accuracy with engineering-grade thermoplastic.


MAXIMIZE CLEANLINESS
MAXIMIZE CLEANLINESS

Enclosed, automated material mixing and loading systems allow for a clean workflow.


FULL COLOR AND VOXEL-LEVEL CONTROL

Produce beautiful color parts and stay ahead with a future-ready technology, configurable for voxel control beyond color.

FULL COLOR AND VOXEL-LEVEL CONTROL

INCREASE YOUR PRODUCTIVITY
INCREASE YOUR PRODUCTIVITY

Produce multiple prototype iterations in the time it takes to print a single part.1

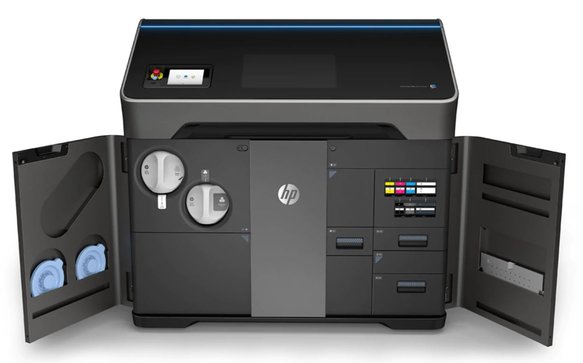

HP JET FUSION 500/300 SERIES 3D PRINTERS






Full spectrum color parts with voxel control

Produce brilliant, full-color functional parts while maintaining optimal mechanical properties.

Stay ahead with a future-ready technology.

Accurate, functional parts with intricate detail

Produce engineering-grade thermoplastic parts with optimal mechanical properties.

Achieve fine detail and high dimensional accuracy for small features

Access a wide range of future materials and applications with the HP Multi Jet Fusion Open Platform

Get accurate and repeatable results.

Accelerate design—create, test, iterate in hours

Produce multiple prototype iterations in the same time it takes to print a single part. 1

Access convenient in-house automated 3D printing with the most compact HP Jet Fusion 3D device.

Get the parts you want when you need them, easily, reliably, and predictably with immediate access to support.

Move smoothly from prototyping to final part production with the same HP Multi Jet Fusion technology.



Job preparation and monitoring

All you need to start your 3D printing project — intuitive and powerful software with the essential features to prepare and send your parts to print.

smart stream
HP SmartStream 3D Build Manager

Intuitive, powerful software to prepare and send your parts to print.

Autodesk® Netfabb®

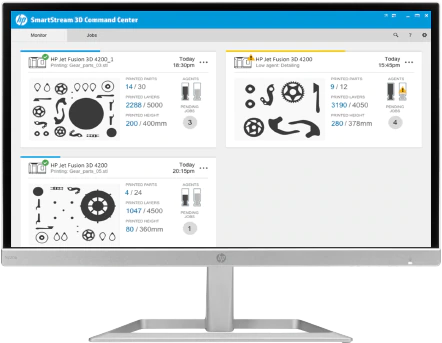

HP SmartStream 3D Command Center

Keep track of build status, check consumables, and get real-time alerts.

Integration with industry-leading solutions

Materialise
Materialise Build Processor for HP Multi Jet Fusion

Connect with Materialise Magics with Materialise Build Processor for HP Multi Jet Fusion, the industry standard software for professional 3D Printing, to unlock the full potential of your HP 3D printer and manage every step in your production process.

Autodesk® Netfabb®
Autodesk® Netfabb® with HP Engine

Provides advanced software for the additive manufacturing of production quality parts. Quality control functions prevent machine errors and enhance your overall process reliability and efficiency.

3MF
Founding member of 3MF Consortium

HP is a founding member of the 3MF Consortium—an industry consortium working to define a new 3D printing format that will allow design applications to send full-fidelity 3D models to a mix of other applications, platforms, services and printers.

∗ Specifications subject to change without notice.
∗∗ Material dependent.

Technical specifications

HP Jet Fusion 300/500 Color 3D Printer
Printer performance Technology HP Multi Jet Fusion technology
  Effective building volume Up to 332 x 190 x 248 mm (13.1 x 7.5 x 9.8 inches)
  Building speed 4 2,199 cm 3/hr (134 in3/hr)
  Full build job time for 248-mm (9.8-in) buildable height 5 As fast as 18 hours
  Partial build job time for 25-mm (1-in) buildable height 5 As fast as 5 hours
  Layer thickness 0.08 mm (0.003 inches
  Printhead resolution 1200 dpi
Dimensions
(w x d x h)
Printer 1565 x 955 x 1505 mm (61.6 x 37.6 x 59.3 inches)
  Shipping 1770 x 1143 x 2013 mm (69.7 x 45 x 79.3 inches)
  Operating area 2785 x 2530 x 2440 mm (109.6 x 99.3 x 96 inches)
Weight Printing 650 kg (1433 lb)
  Shipping 850 kg (1874 lb)
Network 6 Gigabit Ethernet (10/100/1000Base-T), supporting the following standards: TCP/IP, DHCP (iPv4 only), TLS/SSL)
Hard disk HDD 1TB (AES-256 encrypted, disk wipe DoD 5520M) & SSD 1TB (AES-256 encrypted)
Materials HP 3D HR CB PA 12 10L/4 kg 7
Software Included software HP SmartStream 3D Build Manager,
HP SmartStream 3D Command Center
  Supported file formats 3MF, STL, OBJ, VRML v.2
Power Consumption 4.5-6.3 kW (typical)
  Requirements Two dedicated circuits configuration: input voltage 230 - 240 V (line-to-line), 16 A max, 50/60 Hz; One dedicated circuit configuration: input voltage 200 - 240 V (line-to-line), 36 A max, 50/60 Hz
Certification Safety NA (US & Canada): IEC 61010-1 compliant, NRTL certified; EU: Machinery Directive, EN 61010-1, EN 60204-1, EN ISO 12100 and EN ISO 13849-1 compliant
  Electromagnetic compatibility EN 55032:2012 Class A; CISPR 32:2012 Class A; FCC CFR 47 Part 15 Class A; ICES-003, Issue 6 Class A; EN 61000-3-12:2011; IEC 61000-3-12:2011; EN 61000-3-11:2000; IEC 61000-3-11:2000; EN 55024:2010; CISPR 24:2010
  Environmental REACH compliant
Warranty & Service coverage included One-year limited hardware warranty

HP Jet Fusion 3D Printing



1. Based on internal and third-party testing for HP Jet Fusion 580 Color and 540 3D Printers, printing and cooling time is a fraction of the time of the printing times of comparable plastic fused deposition modeling (FDM), stereolithography (SLA), and material jetting solutions from $20,000 USD to $120,000 USD on market as of June, 2017. Testing variables for the HP Jet Fusion 580 Color 3D Printer: Part quantity: 1 full build chamber of parts from HP Jet Fusion 3D at 10% of packing density versus same number of parts on abovementioned competitive devices; Part size: 30 cm 3; Layer thickness: 0.08 mm/0.003 inches. Competitor testing variables are comparable
2. Compared to manual print retrieval process used by other powder-based technologies. The term “cleaner” does not refer to any indoor air quality requirements and/or consider related air quality regulations or testing that may be applicable
3. Assuming 220 working days of 30 cm 3 parts at a 10% packing density using HP 3D High Reusability CB PA 12 material, and a 20% powder reusability ratio
4. Based on 0.08-mm (0.003-in) layer thickness and 8.3 sec/layer.
5. Assumes default cooling and auto extraction printing options. Job duration begins at the moment the job is selected to print at the control panel and ends at the time the parts are ready to be removed from the build chamber. Does not include part cleaning.
6. The HP Jet Fusion 3D Printing Solution should be connected to the HP Cloud in order to enable the correct functioning of the printer and to offer better support.
7. Liters refers to the materials container size and not the actual materials volume. Materials are measured in kilograms.
8. The HP powder and agents do not meet the criteria for classification as hazardous according to Regulation (EC) 1272/2008 as amended.
9. HP Jet Fusion 3D Printing Solutions using HP 3D High Reusability CB PA 12 provide 80% post-production surplus powder reusability, producing functional parts batch after batch. For testing, material is aged in real printing conditions and powder is tracked by generations (worst case for recyclability). Parts are then made from each generation and tested for mechanical properties and accuracy.
10. Printing supplies eligible for recycling vary by printer. Visit hp.com/recycle to see how to participate and for HP Planet Partners program availability; program may not be available in your area. Where this program is not available, and for other consumables not included in the program, consult your local waste authorities on appropriate disposal
