Fire extinguisher mounting bracket for Nissan Skyline, Stagea and Sylvia.
(fire extinguisher not included)

The bracket is fabricated from 3mm steel and uses the factory seat bolts and M6 high tensile hardware (supplied) to securely mount an aftermarket fire extinguisher (not supplied) in front of the RHD drivers seat.

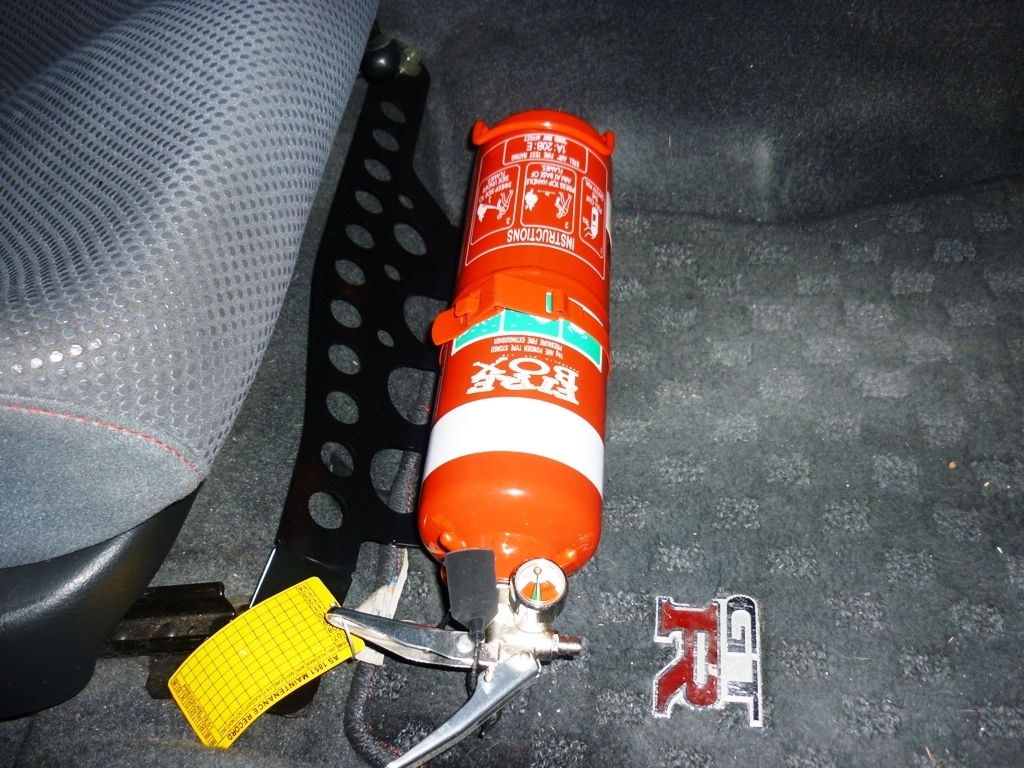

This bracket bolts straight into the following Nissan cars (see mounting pics):

R32 Skyline GTST
R32 Skyline GTR
R33 Skyline GTST
R33 Skyline GTR
R34 Skyline GTR (GT and GTT use a different bracket you can find it here)
S13 Silvia
S14 Sylvia
S15 Sylvia (S15 special coming soon)
C34 Stagea RS4 & Autech
(Can be modified to fit R31 skylines. May fit other cars.)






(BRA001)

CAMS (Confederation of Australian Motorsport) scrutineers have been cracking down on poorly mounted fire extinguishers at trackdays. This bracket has been developed by Trackday enthusiasts in response to Schedule H of the CAMS Motorsport manual . This bracket has passed countless CAMS scrutineer inspections over the last 6 years and has never been knocked back. The comment typically made is "that's what I like to see, nuts and bolts"

The bracket is fabricated from 3mm steel and uses the factory seat bolts and M6 high tensile hardware (supplied) to securely mount an aftermarket fire extinguisher (not supplied) low in front of the RHD drivers seat. In most cases the factory drivers seat is able to slide forward over the extinguisher if required. Please contact us if you have aftermarket seats to confirm fitment.


What you get:

  • one (1) excellent black powder coated bracket
  • two (2) M6 high tensile bolts with wizzlock nuts
  • some nice packaging to keep it shiny while its shipping to you
What you need:
  • a good quality 1 kg fire extinguisher with at least one metal clamp and two 6mm mounting holes in the base. Stay away from the plastic bracket/clamps they are rubbish
  • make sure its got a recent date on it as it will only last 3 years
  • basic tools: ratchet, extension, sockets, hex drive
How to install:
  1. put your RHD drivers seat in your preferred driving position
  2. put the fire extinguisher on the floor where it would be mounted (use the bracket to locate it approximately) and check the seat slides over it and your happy with which end the nozzle is on
  3. pocket the small change you found under the seat
  4. remove front seat bolts
  5. remove fire extinguisher from its clamp
  6. bolt fire extinguisher clamp to the supplied bracket in the position you determined already. Bolts go in from the top with nuts on the bottom
  7. decide whether your bracket should go underneath or on top of the seat mount flanges (depends which side is flat) and make sure you will still have plenty of thread (at least 3-5 full turns) to hold the seat down
  8. bolt seat and bracket back in
  9. clamp extinguisher back in and check seat slides over it
The fine print
This bracket is installed and used at your own risk. Even though we have designed and manufactured it based upon our experience of what works evok3d accepts no liability for its use



SKU BRA001
Brand EVOK3D
Shipping Weight 1.0000kg
Shipping Width 0.150m
Shipping Height 0.500m
Shipping Length 0.470m
Shipping Cubic 0.035250000m3
