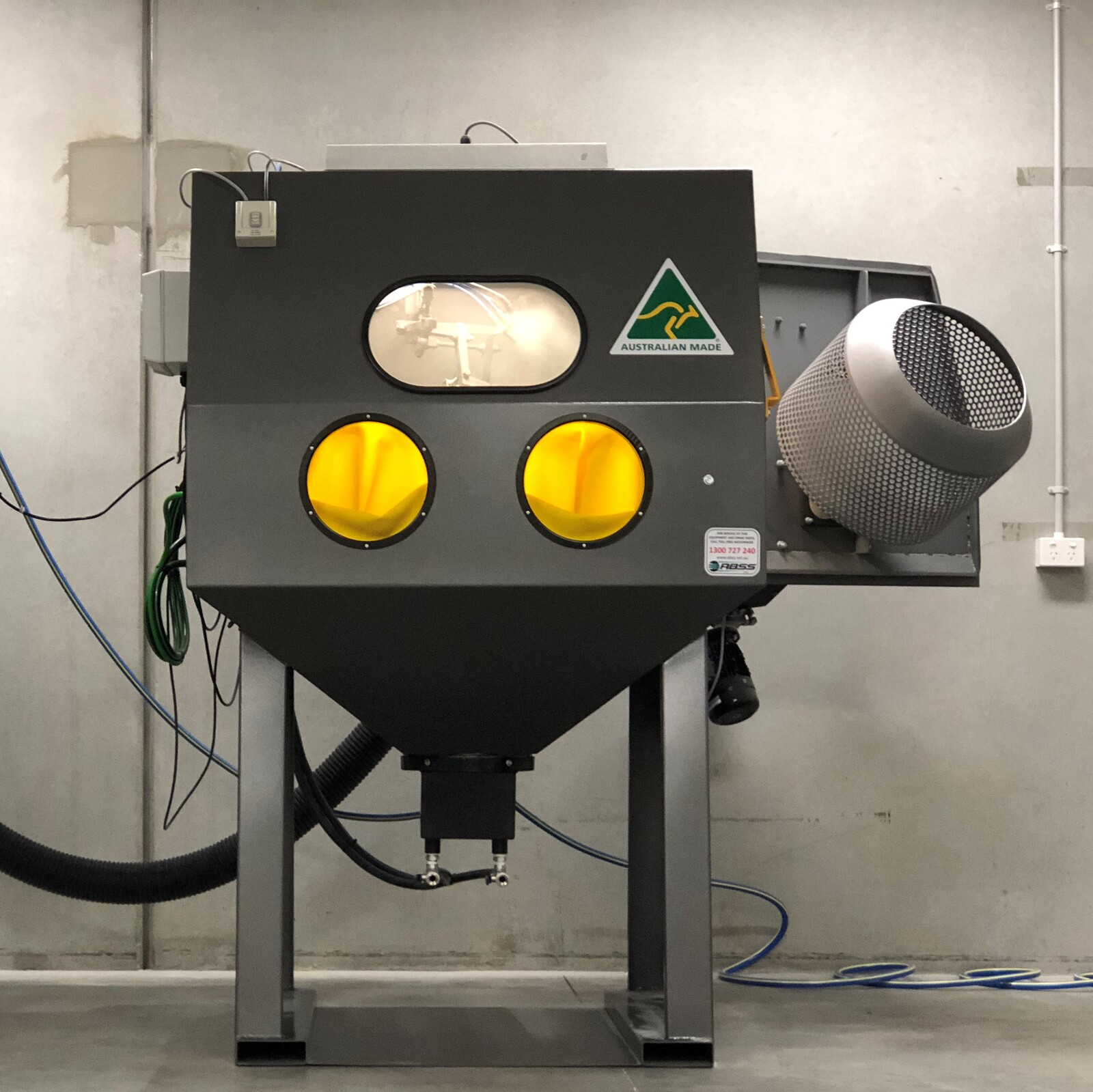

3D AutoBLAST - Automated Basket Blaster

Maximise Productivity & Reduce Manual Labour

Features:

Automatic Mode- Two Stages:
  • Dual head hands free auto bead blasting for small to medium parts
  • Operator adjustable duration and pressure settings.
  • Variable speed, lined 500mm x 300mm basket for bulk parts(parts must be suitable for tumbling action).
  • Final stage air blower for dust free finish
Manual Mod:
  • Foot pedal activated blast action
  • Fixed or handheld blast gun operation
  • Manual trigger air blower
  • Supports various industry standards blast and peening media
  • High volume auto reverse pulse dust collector.
  • 20L dust collection drum.
  • Quick change media hopper
  • Safety interlocks
  • Complies with Australian Electrical Standards

Site Requirements

  • 50 CFM @ 100 psi -Dry Air
  • 2 x 240 Volt, 3 Pin 10 Amp Supply
  • Cabinet weight 300 kgs.
  • Dust Collector 3m included hose length
  • Cabinet eart point provided
  • Cabinet height: 1,964mm
  • Dust collector height:2,350mm - 200mm overhead clearance reqd
  • Forklift unload required
  • Hearing protection recommended during operation
  • User installable

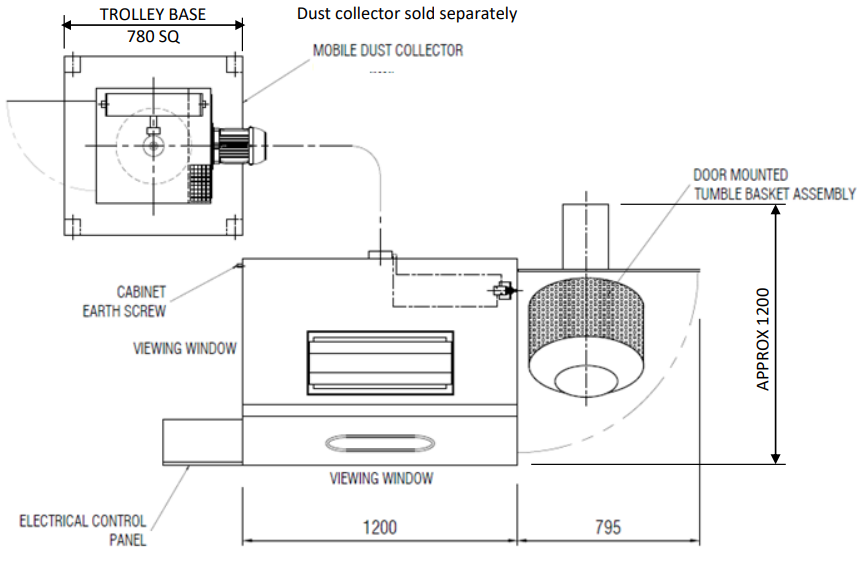

Plan view

(BLA001)

SKU BLA001
Brand EVOK3D
Shipping Weight 400.0000kg
Shipping Width 1.200m
Shipping Height 2.300m
Shipping Length 2.400m
Shipping Cubic 6.624000000m3

Be The First To Review This Product!

Help other EVOK3D users shop smarter by writing reviews for products you have purchased.

Write a product review

Others Also Bought

3D Systems Projet 4500 Vacuum Wiper Spring 360981-00

3D Systems Projet 4500 Vacuum Wiper Spring 360981-00

Part of the Service Station assembly

$25.15 Ex GST
$25.15 Ex GST
Stock on hand: 1
Capping Station 260C / 460Plus (ZPrinter 250/450) 22-06611

Capping Station 260C / 460Plus (ZPrinter 250/450) 22-06611

Capping Station 260C / 460Plus (ZPrinter 250/450) 22-06611

$229.00 Ex GST
$229.00 Ex GST
Stock on hand: 1
Fire Extinguisher Mounting Bracket - Nissan GTR R35

Fire Extinguisher Mounting Bracket - Nissan GTR R35

Fire extinguisher mounting bracket for R35 GTR

$148.15 Ex GST
$148.15 Ex GST
Stock on hand: 13
Round Brush SD* 3"(76mm) Aluminium w/Conductive Bristles

Round Brush SD* 3"(76mm) Aluminium w/Conductive Bristles

Description ROUND BRUSH SD* 3"(76mm) ALUMINUM w/CONDUCTIVE BRI

$151.50 Ex GST
$151.50 Ex GST
Stock on hand: 2
Stratasys® SR10 aka P400SR alternative - 922cc - Chip & Grey Break Away Spool

Stratasys® SR10 aka P400SR alternative - 922cc - Chip & Grey Break Away Spool

Includes Replacement filament spool & EEPROM chip for Re-Use & Re-Filling of Stratasys® FDM® cassettes This break away support material can be used as an refill / alternative

$390.67 Ex GST
$390.67 Ex GST
Stock on hand: 3
Stratasys® Alternative ASA - 1510cc Natural Spool & Chip

Stratasys® Alternative ASA - 1510cc Natural Spool & Chip

Includes Replacement filament spool & EEPROM chip for Re-Use & Re-Filling of Stratasys® FDM® cassettes Support Documents

$549.35 Ex GST
$549.35 Ex GST
Stock on hand: 3

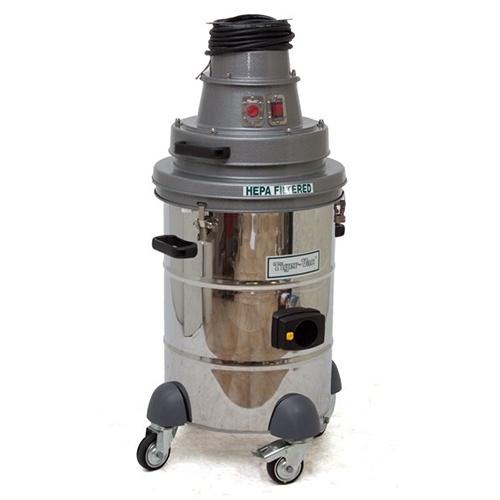

TigerVac ATEX Vacuum Model C-10EX with brushless motor
