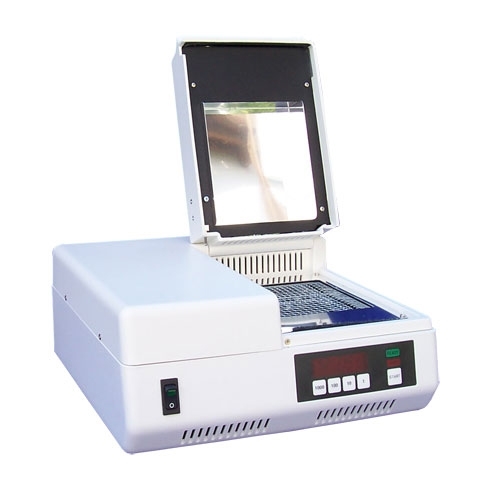

Otoflash Post Curing Light Pulsing Unit

The Otoflash is a light polymerization chamber for the hardening/curing of light curing resins for jewelry, dental, and otoplastic applications. Two photoflash lamps at the bottom of the curing chamber operate in a work mode with a frequency of 10 flashes per second. The photo-flash lamps produce a very intensive light radiation in a spectrum from 300 up to 700 nm. Because of this intensive light radiation, a better hardening of the materials is possible, resulting in materials with good physical values and reduced content of residual monomer versus using other lamp types with a different light emitting spectrum.

Configuration:

  • Size of the polymerisation space: 120 x 120 x 50 mm
  • 1x holding tray for the curable items, type 360N2, transmits wavelengths 360-700 nm (= tray with UVB-block)
  • 1x holding tray for the curable items, type 280N2, transmits wavelengths 280-700 nm (= tray without UVB-block)
  • Rated voltage: 100, 115, 230 Volts AC (adjustable by a selector)
  • Rated frequency: 50/ 60 Hz
  • Power input: app. 250 Watts
  • Spectral distribution: 300-700 nm, maximum between 400 and 500 nm
  • Flash-module: 2 flash-light bulbs, arranged below the device à 100 Watts *)
  • Dissipated power: approx. 200 Watts
  • Flash frequency: 10 flashes per second
  • Digital timer: programmable from 1 to 9,999 flashes
  • Measurements: LHW 310 x 310 x 140 mm
  • Weight: approx. 7 kg


*) life duration of the flash-bulbs: approx. 250 hours



(ENV217)

All our products come with a 12 month warranty on assembly errors and material defects from the date on the invoice.

Excluded from the guarantee are modifications of the unit as well as the flash bulbs, reflectors and all other parts of the unit which are subject to wear and tear.

The warranty becomes invalid if non-authorised personnel carried out repairs or alterations of the unit.

Exchanged parts become the property of EVOK3D. The warranty does not include any transportation costs.

  • Dimensions of polymerisation chamber: 120 x 120 x 50 mm
  • Number of light sources: 2 flashbulbs @ 100 w
  • Capacity: 4 BTE-aids or 6 ITE-aids
  • Rated voltage: 100, 117, 230 volt AC, adjustable by switch
  • Rated frequency: 50/60 Hz
  • Power input: 250 watt
  • Spectral distribution: 280-700 nm, maximum between 400 and 500 nm
  • Average flash power: 200 watt
  • Flash frequency: 10 flashes per second
  • Digital timer: adjustable from 1 to 9.999 flashes
  • Dimensions: 310 x 310 x 140 mm
  • Weight: 6 kg
Machine Properties
Operating Voltage 100,115,230,volt AC, Selectable
Nominal Frequency 50/60 Hz
Power Input About 250 W
Radiated/Flashed Lamp Power About 200 W (100 X/Lamp)
Light Power Ca. 1/3 of lamp power ≈ 66 W
Spectral Distribution 300-700 nm, max 400-500
Light Power in Interesting Spectrum Ca 1/3 of lamp power ≈ 11 W
Flash Rate 10 flashes per second
Digital Timer Adjustable from 1 up to 9999 flashes
Life Time 300-500 hours operating time (10.8 - 18 Million flashes)
Curing Chamber 120 x 120 x 50 mm
Outer Dimensions 310 x 310 x 140 mm
Weight 6kg
SKU ENV217
Brand NK Optik
Shipping Weight 10.0000kg
Shipping Width 0.440m
Shipping Height 0.330m
Shipping Length 0.440m
Shipping Cubic 0.063888000m3
