HP JET FUSION 3D 4200

Reinvent how you manufacture end use parts

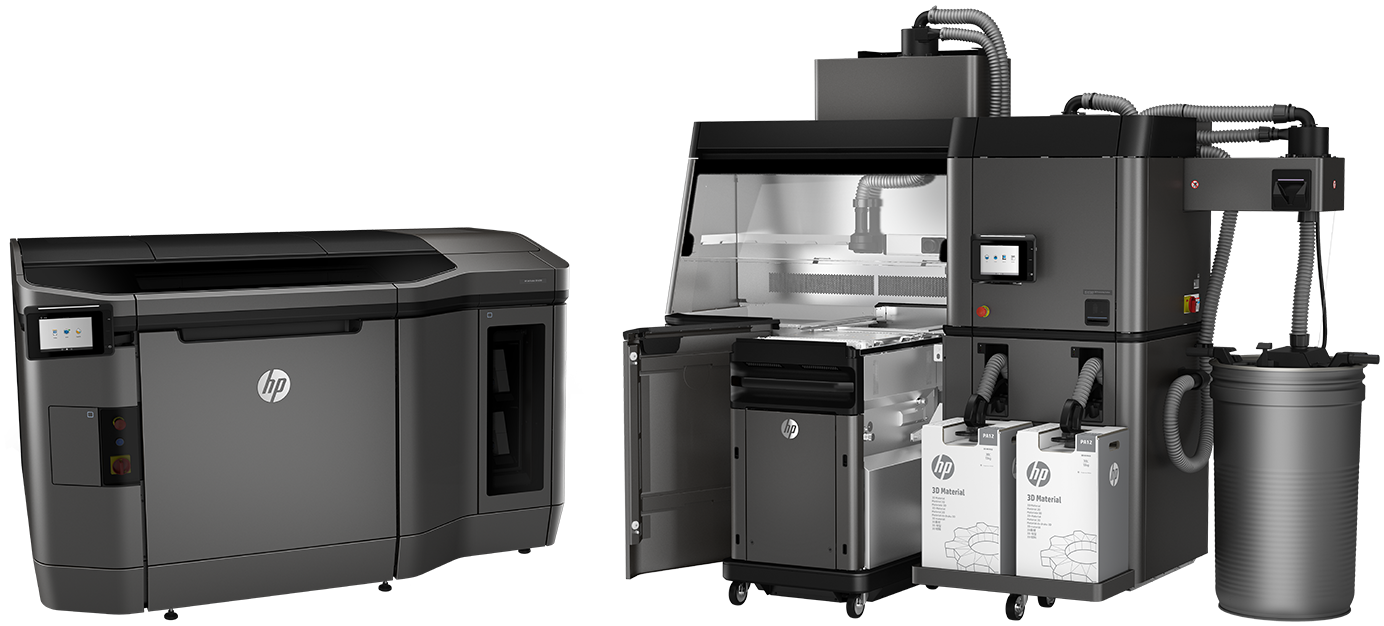

Meet the HP Jet Fusion 3D 4200/3200 Printing Solution Meet the HP Jet Fusion 3D 4200/3200 Printing Solution

  1. Breakthrough speed

    View more View less

    Breakthrough speed up to 10 times faster 3 with 30 million drops per second across each inch of the working area

  2. Extreme accuracy and fine detail1

    View more View less

    HP fusing and detailing agents work with HP Multi Jet Fusion technology and materials to deliver fine details and dimensional accuracy 1

  3. Voxel-level control

    View more View less

    Accurate thermal control of every layer enables predictive corrections voxel by voxel for optimal mechanical properties 2

  4. Maximum control during progress

    View more View less

    In-printer quality checks reported via a touchscreen, help minimize errors and enable easy and accurate job progress tracking

  5. Reduce labor time

    View more View less

    Automated material mixing and loading systems help streamline your workflow and reduce labor time

  6. Cleaner experience5

    View more View less

    No additional room for parts removal needed with enclosed unpacking and material collection system, including a laminar hood

  7. More parts per day

    View more View less

    The HP Jet Fusion 3D Fast Cooling Module 3 reduces cooling time resulting in faster3 time-to-part and more parts ready within the same day

  8. Maximize productivity

    View more View less

    The HP Jet Fusion 3D Build Unit— included within the printer— is moved on for cooling right after job completion allowing a continuous printing process that maximizes productivity 3

  9. Maximum efficiency

    View more View less

    Optimize cost and part quality, with cost-efficient materials that offer industry-leading reusability. 6 Plan production times more accurately and predictably, to increase your overall operational efficiency.

  10. Flexibility

    View more View less

    Print using different materials.
    The HP Jet Fusion 3D External Tank allows the extraction of recycled material from the Processing Station so it can be replaced by a different material.

LEARN MORE

Superior, consistent part quality3, 4



  • Get extreme dimensional accuracy and fine detail,3thanks to HP’s unique Multi-Agent printing process
  • Produce truly functional parts with optimal mechanical properties,4 faster1
  • Obtain predictable, reliable final printed parts that match your design5
  • Access new future materials and uncover new applications thanks to the HP Multi Jet Fusion Open Platform



Breakthrough productivity 1



  • Produce more parts per day with continuous printing and fast cooling 6
  • Streamline your workflow with HP’s automated materials preparation and postprocessing station
  • Cleaner experience with an enclosed Processing Station and materials not classified as hazardous 7
  • Rely on HP’s Technical Services and Support—including Next Business Day Support & Parts9—to help maximize uptime and productivity
  • Choose your ideal end-to-end solution from a range of printing and processing options



Lowest cost-per-part 2



  • Achieve lowest cost-per-part2 and reduce operational costs, opening your doors to short-run manufacturing
  • Benefit from a competitively priced 3D printing solution 2
  • Optimize cost and part quality, with costefficient materials that offer industry-leading reusability 8
  • Plan production times more accurately and predictably, to increase your overall operational efficiency




HP 3D High Reusability PA 12

HP 3D High Reusability PA 12

Strong, low cost,10 quality parts

View product datasheet

VESTOSINT 3D PA 12

VESTOSINT® 3D Z2773 PA 12

Certified for HP Jet Fusion printers.15 Multi-purpose affordable thermoplastic material for strong parts.

View product datasheet

HP 3D High Reusability PA 12 GB

HP 3D High Reusability PA 12 GB12

Stiff, dimensionally stable, quality parts

View product datasheet

HP 3D High Reusability PA 11

HP 3D High Reusability PA 117

Ductile,8 quality parts

View product datasheet

ESTANE 3D TPU

ESTANE® 3D TPU M95A14

High rebound and low abrasion resistance

View product datasheet

Job preparation and monitoring

All you need to start your 3D printing project — intuitive and powerful software with the essential features to prepare and send your parts to print.

smart stream
HP SmartStream 3D Build Manager

Intuitive, powerful software to prepare and send your parts to print.

Autodesk® Netfabb®
HP SmartStream 3D Command Center

Keep track of build status, check consumables, and get real-time alerts.

Integration with industry-leading solutions

Materialise
Materialise Build Processor for HP Multi Jet Fusion

Connect with Materialise Magics with Materialise Build Processor for HP Multi Jet Fusion, the industry standard software for professional 3D Printing, to unlock the full potential of your HP 3D printer and manage every step in your production process.

Learn more
Autodesk® Netfabb®
Autodesk® Netfabb® with HP Engine

Provides advanced software for the additive manufacturing of production quality parts. Quality control functions prevent machine errors and enhance your overall process reliability and efficiency.

Learn more
3MF
Founding member of 3MF Consortium

HP is a founding member of the 3MF Consortium—an industry consortium working to define a new 3D printing format that will allow design applications to send full-fidelity 3D models to a mix of other applications, platforms, services and printers.

Learn more
Siemens
Siemens NX AM for HP Multi Jet Fusion

The new Siemens NX AM for HP Multi Jet Fusion module will enable NX customers to combine design, optimization, simulation, preparation of print jobs, and inspection processes for HP Multi Jet Fusion 3D printed parts all in a single managed environment and with a minimum of steps.

Learn more

∗ Specifications subject to change without notice.
∗∗ Material dependent.

Technical specifications11

HP Jet Fusion 3D 4200/3200 Printer
Printer performance Technology HP Multi Jet Fusion technology
  Effective building volume 380 x 284 x 380 mm (15 x 11.2 x 15 in)
  Building speed 3200 Printer: 2800 cm³/hr (170 in³/hr)12 4200 Printer: 4500 cm³/hr (274 in³/hr)13
  Layer thickness 3200 Printer: 0.08 mm (0.003 in) 4200 Printer: 0.07 to 0.08 mm
  Print resolution (x, y) 1200 dpi
Dimensions
(w x d x h)		 Printer 2210 x 1200 x 1448 mm (87 x 47 x 57 in)
  Shipping 2300 x 1325 x 2068 mm (91 x 52 x 81 in)
  Operating area 3700 x 3700 x 2500 mm (146 x 146 x 99 in)
Weight Printer 750 kg (1653 lb)
  Shipping 945 kg (2083 lb)
Network14 Gigabit Ethernet (10/100/1000Base-T), supporting the following standards: TCP/IP, DHCP (IPv4 only), TLS/SSL
Hard disk 2 TB (AES-128 encrypted, FIPS 140, disk wipe DoD 5220M)
Software Included software HP SmartStream 3D Build Manager,
HP SmartStream 3D Command Center
  Supported file formats 3mf, stl
  Certified third-party software Autodesk® Netfabb® Engine for HP, Materialise Magics with Materialise Build Processor for HP Multi Jet Fusion, Siemens NX AM for HP Multi Jet Fusion
Power Consumption 9 to 11 kW (typical)
  Requirements Input voltage three phase 380-415 V (line-to-line), 30 A max, 50/60 Hz / 200-240 V (line-to-line), 48 A max, 50/60Hz
Certification Safety IEC 60950-1+A1+A2 compliant; United States and Canada (UL listed); EU (LVD and MD compliant, EN60950-1, EN12100-1, EN60204-1, and EN1010)
  Electromagnetic Compliant with Class A requirements, including: USA (FCC rules), Canada (ICES), EU (EMC Directive), Australia (ACMA), New Zealand (RSM)
  Environmental REACH
Warranty & Service coverage included One-year limited hardware warranty
HP Jet Fusion 4200/3200 Processing Station with Fast Cooling6
Features Automated mixing, sieving, and loading; semi-manual unpacking; fast cooling; external storage tank; compatible with high-capacity material cartridges
Dimensions
(w x d x h)		 Processing Station with Fast Cooling 6 3121 x 1571 x 2400 mm (122.9 x 61.9 x 94.5 in)
  Shipping 3499 x 1176 x 2180 mm (137.8 x 46.3 x 85.8 in)
  Operating area 3321 x 3071 x 2500 mm (130.7 x 120.9 x 99 in)
Weight Processing Station with Fast Cooling 6 480 kg (1058 lb)
  Loaded 810 kg (1786 lb)
  Shipping 620 kg (1367 lb)
Power Consumption 2.6 kW (typical)
  Requirements Input voltage single phase 200-240 V (line-to-line), 19 A max, 50/60Hz or 220 -240 V (line-to-neutral), 14 A max, 50Hz
Certification Safety UL 2011, UL508A, NFPA, C22.2 NO. 13-14 compliant; United States and Canada (UL listed); EU (MD compliant, EN 60204-1, EN 12100-1 and EN 1010)
  Electromagnetic Compliant with Class A requirements, including: USA (FCC rules), Canada (ICES), EU (EMC Directive), Australia (ACMA), New Zealand (RSM)
  Environmental REACH
Warranty & Service coverage included One-year limited hardware warranty

HP Jet Fusion 3D Printing






Register your interest
1. Based on internal testing and simulation, HP Jet Fusion 3D average printing time is up to 10 times faster than average printing time of comparable fused deposition modeling (FDM) and selective laser sintering (SLS) printer solutions from $100,000 USD to $300,000 USD on market as of April, 2016. Testing variables: Part quantity: 1.4 full build chamber of parts from HP Jet Fusion 3D at 20% of packing density on fast print mode vs same number of parts on above-mentioned competitive devices; Part size: 30 grams; Layer thickness: 0.08 mm/0.0031 inches.
2. Based on internal testing and public data, HP Jet Fusion 3D Printing Solution average printing cost-per-part is half the average cost of comparable FDM & SLS printer solutions from $100,000 USD to $300,000 USD on market as of April 2016. Cost analysis based on: standard solution configuration price, supplies price, and maintenance costs recommended by manufacturer. Cost criteria: printing 1build chambers per day/ 5 days per week over 1 year of 30-gram parts at 10% packing density using HP 3D High Reusability PA 12 material, and the powder reusability ratio recommended by manufacturer.
3. Based on dimensional accuracy of ±0.2 mm/0.008 inches, measured after sand blasting with HP 3D High Reusability PA 12 material. See hp.com/go/3Dmaterials for more information on materials specifications.
4. Based on the following mechanical properties: Tensile strength at 48 MPa (XYZ), Modulus at 1700-1800 MPa (XYZ). ASTM standard tests with HP 3D High Reusability PA 12 material. See hp.com/go/3Dmaterials for more information on materials specifications.
5.The term “cleaner”, does not refer to any indoor air quality requirements and/or consider related air quality regulations or testing that may be applicable.
6. HP Jet Fusion 3D print solution with HP 3D High Reusability PA 12 has the highest post-production surplus powder reusability with 80% reusability vs any other powder based 3D printing technology using PA 12 material. Consistent performance with only 20% powder refresh rate.
7. The only terms and conditions governing the sale of HP 3D printer solutions are those set forth in a written sales agreement. The only warranties for HP products and services are set forth in the express warranty statements for such products and services. Nothing herein should be construed as constituting an additional warranty or additional binding terms and conditions. HP shall not be liable for technical or editorial errors or omissions contained herein and the information herein is subject to change without notice. The Certified for HP Jet Fusion 3D Materials have not been designed, manufactured or tested by HP for compliance with legal requirements and recipients are responsible for making their own determination as to the suitability of Vestosint 3D Z2773 for their purposes, including but not limited as regards direct or indirect food contact applications.
8. Available in most countries, subject to Terms & Conditions of HP Limited Warranty and/or Service Agreement. Please consult your local sales representatives for further details.
9. Based on producing multiple prototype iterations in the same time it takes to print a single part per internal testing of average printing time, assuming a build with multiple prototype iterations that can be packed into the same number of layers occupied by the single part.
10. Based on internal testing and public data, HP Jet Fusion 3D printing solution average printing cost per part is half the cost of comparable fused deposition modeling (FDM) and selective laser sintering (SLS) printer solutions from $100,000 USD to $300,000 USD, when averaged together and not taken individually, in market as of April 2016. Cost analysis based on: standard solution configuration price, supplies price, and maintenance costs recommended by the manufacturer. Cost criteria: printing 1-2 buckets per day/5 days per week over 1 year of 30-gram parts at 10% packing density using the powder reusability ratio recommended by the manufacturer.
11. Based on internal testing and public data, HP Jet Fusion 3D 4210 Printing Solution average printing cost-per-part is 65% lower versus the average cost of comparable fused deposition modeling (FDM) and selective laser sintering (SLS) printer solutions from $100,000 USD to $300,000 USD on market as of April, 2016 and is 50% lower versus the average cost of comparable SLS printer solutions for $300,000 USD to $450,000 USD. Cost analysis based on: standard solution configuration price, supplies price, and maintenance costs recommended by manufacturer. Cost criteria: printing 1.4 full build chambers of parts per day/5 days per week over 1 year of 30-gram parts at 10% packing density on fast print mode using HP 3D High Reusability PA 12 material, and the powder reusability ratio recommended by manufacturer.
